Failure types with inconsistent S ratings

Help & support

Search:

Failure types with inconsistent S ratings

Explanation:

A search will be performed for failure types with more than one instance, whereby the instances have inconsistent S ratings

Note:

  • Types are IQ-objects that are recorded in Catalogs and carry information that is the same for all instances of the type
  • Instances of IQ-objects are created when IQ-objects are selected from the Catalogs and reused elsewhere in the IQ-Software

Example:


Abbreviations
  • ASIL = Automotive safety integrity level
  • BF = Base failure of a base function
  • BFn = Base function of a base structure element
  • BSE = Base structure element
  • Cl Prc = Classification for process characteristic
  • Cl Prd = Classification for product characteristic
  • Cl Req = Classification for requirement
  • CM = Control method
  • DA = Detection action
  • DC = Diagnostic coverage
  • DSCF = Dangerous safety critical failure
  • Er Det = Error detection
  • Er Resp = Error response
  • F = Failure
  • FIT = Failure in time
  • Fn = Function
  • FSM = Functional safety management
  • IE = Inspection equipment
  • LF = Latent fault
  • LFM = Latent fault metric
  • OC = Operating condition
  • PA = Preventive action
  • PE = Process element
  • PFH = Probability of failure per Hour
  • PMHF = Probabilistic metric for random hardware failures
  • PrcC = Process characteristic
  • PrdC = Product characteristic
  • QM = Quality method
  • QR = Quality rule
  • Req = Requirement
  • RMR = Risk Matrix Ranking
  • RP = Reaction plan
  • SE = Structure element
  • SE ErDet = Structure element for error detections
  • SE ErResp = Structure element for error responses
  • SFF = Safe failure fraction
  • SG = Safety Goal
  • SIL = Safety integrity level
  • SM = Organisational-SE for “safety mechanisms”
  • SPF = Single point fault
  • SPFM = Single point fault metric
  • TF = Top failure of a top function
  • TFn = Top function at root element
  • TS = Test sample


054_Se

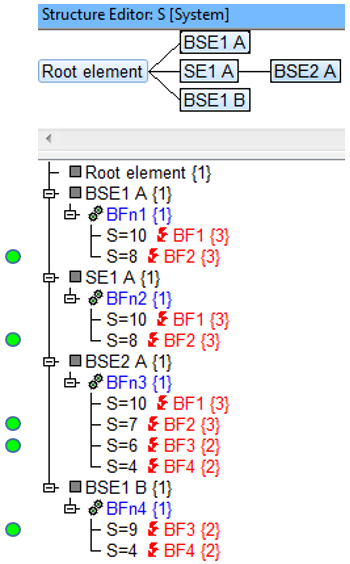

  • The failures BF1 and BF2 are anchored at three different functions BFn1, BFn2 and BFn3. They each, therefore, appear three times in the structure, which can be identified with the number in the curly braces {3}. The display option “Instance count” must be active to see this number.
  • The failures BF3 and BF4 are each anchored at two functions BFn3 and BFn4 and therefore have each two instances ({2}).
  • With the display option “Severity” active, it is possible to see the S rating assigned to all failures listed.



Search result: Search results

This example will deliver 5 hits: all instances of BF2 and both instances of BF3.

Download QR example
