DSCF with target SFF not reached

Explanation:

A search will be made for Dangerous Safety-Critical Failures (DSCF) whose actual Safe Failure Rate (SFF-target), according to IEC 61508, is lower than the required SFF-target value.

Note:

  • A DSCF (Dangerous Safety-Critical Failure) is a failure which has a safety level (SIL/ASIL) not equal to QM (Quality Management). The function at which the DSCF is anchored is automatically defined as a safety goal (see Properties dialog „Functional Safety“).
  • SFF (IEC 61508) = Safe Failure Fraction [%]

Example:


Abbreviations
  • ASIL = Automotive safety integrity level
  • BF = Base failure of a base function
  • BFn = Base function of a base structure element
  • BSE = Base structure element
  • Cl Prc = Classification for process characteristic
  • Cl Prd = Classification for product characteristic
  • Cl Req = Classification for requirement
  • CM = Control method
  • DA = Detection action
  • DC = Diagnostic coverage
  • DSCF = Dangerous safety critical failure
  • Er Det = Error detection
  • Er Resp = Error response
  • F = Failure
  • FIT = Failure in time
  • Fn = Function
  • FSM = Functional safety management
  • IE = Inspection equipment
  • LF = Latent fault
  • LFM = Latent fault metric
  • OC = Operating condition
  • PA = Preventive action
  • PE = Process element
  • PFH = Probability of failure per Hour
  • PMHF = Probabilistic metric for random hardware failures
  • PrcC = Process characteristic
  • PrdC = Product characteristic
  • QM = Quality method
  • QR = Quality rule
  • Req = Requirement
  • RMR = Risk Matrix Ranking
  • RP = Reaction plan
  • SE = Structure element
  • SE ErDet = Structure element for error detections
  • SE ErResp = Structure element for error responses
  • SFF = Safe failure fraction
  • SG = Safety Goal
  • SIL = Safety integrity level
  • SM = Organisational-SE for “safety mechanisms”
  • SPF = Single point fault
  • SPFM = Single point fault metric
  • TF = Top failure of a top function
  • TFn = Top function at root element
  • TS = Test sample


018_Structure

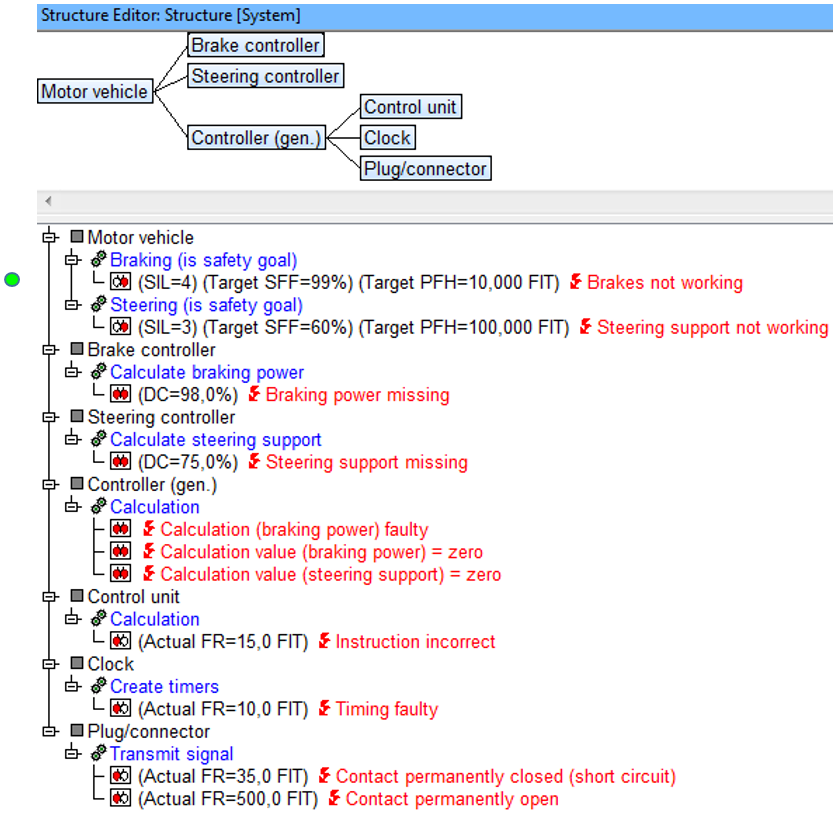

  • The example structure shown above shows a compressed extract from the brake and steering area of a motor vehicle. The functions that contain safety goals have this info in brackets in the function name.  The IQ-Software automatically identifies a function as a safety goal if at least one failure anchored below this function has a SIL/ASIL value unequal to QM.

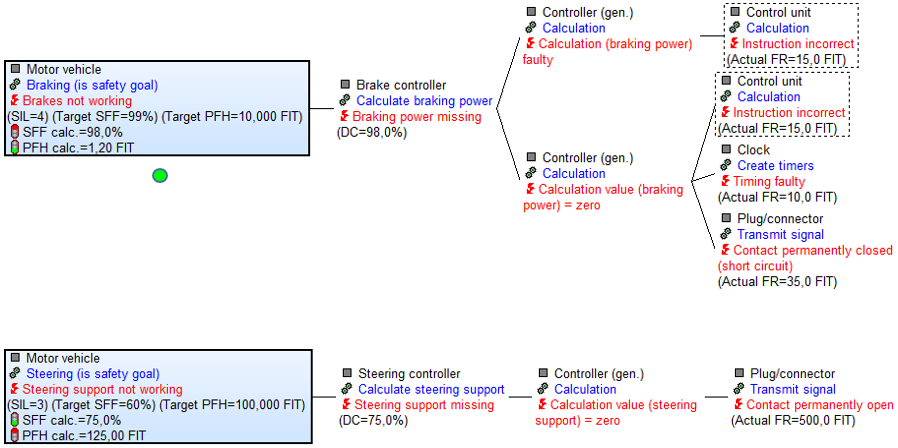

  • How the top failures “Brakes not working” and “Steering support not working” are linked in the failure net can be seen here:

018_failure_net

  • Since the aim of this quality rule is to find those DSCF whose SFF-target values are higher than the SFF-actual values, it is advantageous to have a tool available in IQ-Software which displays the comparison, optically marks it and thus offers a check on the result of the quality rule application. These are traffic lights (traffic light red traffic light green), which are displayed in the failure net at the focus element. The display option setting “Functional Safety parameters” must be active. With the focus on the top failure and correct display option settings active, it is possible to see which DSCF will appear in the search results of this quality rule.

Search result: Search results

In this example, there are two DSCF that are top failures anchored to the root element. A red traffic light left of “PFH calc.” indicates that here the target value is greater than the actual value. Therefore, the DSCF “Steering support not working” is a hit.

Download QR example
