Search:
Control methods and Reaction plans without responsibles
Explanation:
A search for Control methods and Reaction plans that have no responsible assigned to them will be performed.
Example:
Abbreviations
- ASIL = Automotive safety integrity level
- BF = Base failure of a base function
- BFn = Base function of a base structure element
- BSE = Base structure element
- Cl Prc = Classification for process characteristic
- Cl Prd = Classification for product characteristic
- Cl Req = Classification for requirement
- CM = Control method
- DA = Detection action
- DC = Diagnostic coverage
- DSCF = Dangerous safety critical failure
- Er Det = Error detection
- Er Resp = Error response
- F = Failure
- FIT = Failure in time
- Fn = Function
- FSM = Functional safety management
- IE = Inspection equipment
- LF = Latent fault
- LFM = Latent fault metric
- OC = Operating condition
- PA = Preventive action
- PE = Process element
- PFH = Probability of failure per Hour
- PMHF = Probabilistic metric for random hardware failures
- PrcC = Process characteristic
- PrdC = Product characteristic
- QM = Quality method
- QR = Quality rule
- Req = Requirement
- RMR = Risk Matrix Ranking
- RP = Reaction plan
- SE = Structure element
- SE ErDet = Structure element for error detections
- SE ErResp = Structure element for error responses
- SFF = Safe failure fraction
- SG = Safety Goal
- SIL = Safety integrity level
- SM = Organisational-SE for “safety mechanisms”
- SPF = Single point fault
- SPFM = Single point fault metric
- TF = Top failure of a top function
- TFn = Top function at root element
- TS = Test sample

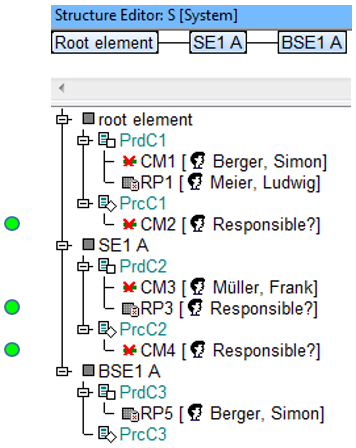

The example structure consists of three structure elements, to each of which a product characteristic (
) and a process characteristic (
)
are assigned. The characteristics of each structural element are assigned control methods
and/or
reaction plans
of varying
frequency, sometimes with and sometimes without responsibles.
This quality rule identifies those control methods and reaction plans to which no responsible has been assigned. This can also be checked by making the following display option active: and checking the structure list manually as in the example above.
Search result:
From the example above the Quality Rules search would deliver CM2 and CM4 as well as RP3.
