MSR Form explanation to the column: Diagnostic Monitoring Action

Contents:

  1. General
  2. Using the MSR Form on an existing FMEA with structure and nets
  3. MSR Form: entering data directly

1. General

The AIAG/VDA Form (MSR) – or simply MSR Form – is drafted in the new alignment of 2019. It is divided into the two sections “Risk Analysis (step 5)”  i.e. representation of the actual status of the FMEA and “Optimization (step 6)” i.e. representation of the planned FMEA status. The AIAG/VDA 2019 manual uses the example of a Window Lift System to demonstrate FMEA-MSR and APIS has used the same example to explain certain aspects here when using the IQ-Software. Furthermore, an .fme file has been programmed. For the sake of clarity, only the structure from the manual with a hybrid net is used. This file can be downloaded here.

2. Using the MSR Form on an existing FMEA with structure and nets

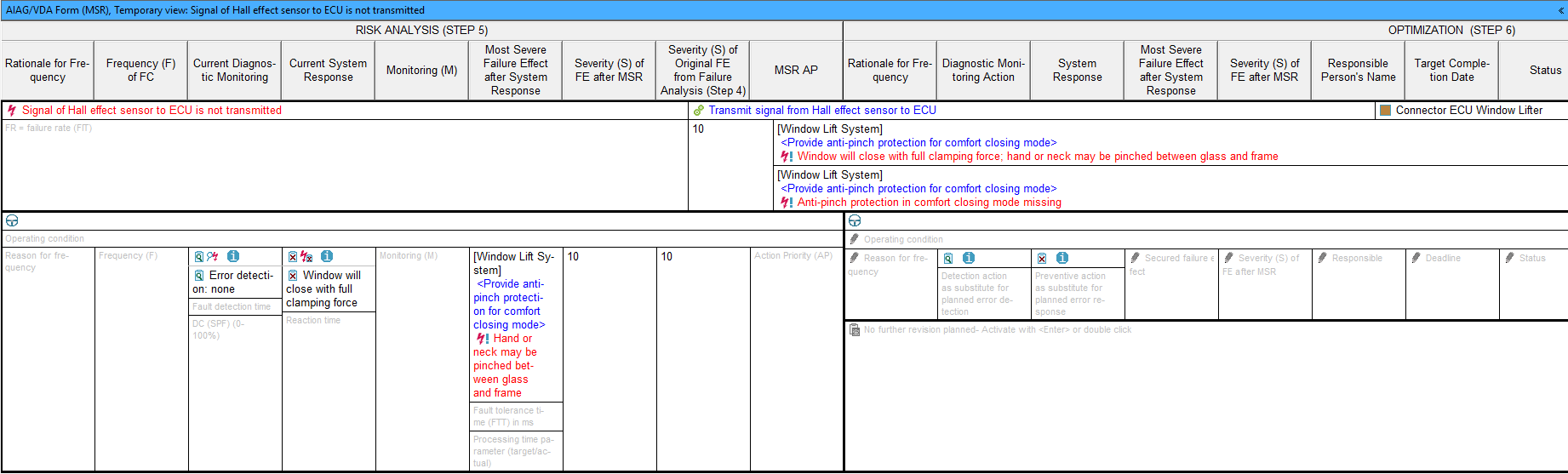

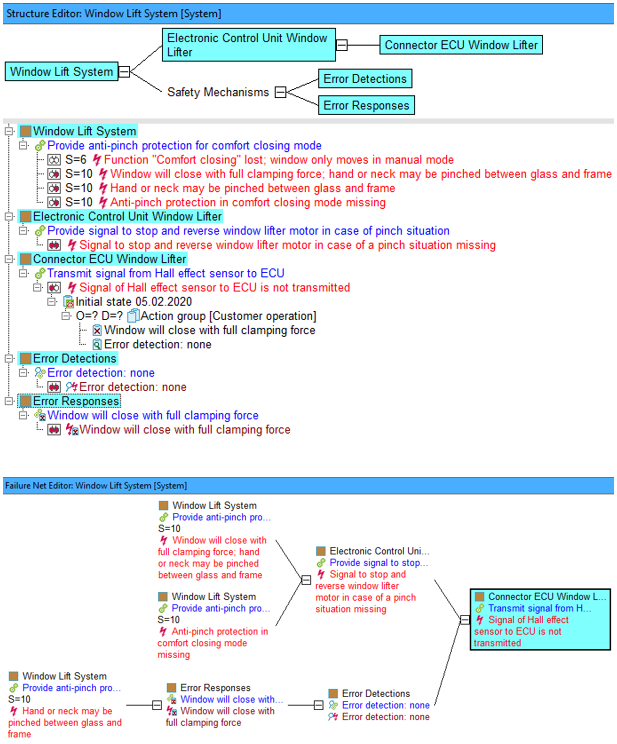

You are currently in the “Diagnostic Monitoring Action” cell of the MSR Form and thus in the “Optimization (step 6)” phase of the FMEA according to the AIAG/VDA manual. In order to complete step 6 of the FMEA-MSR, step 5 must already have been performed. The following image, the Window Lift System example, is ready to be optimized. The images are from the Structure Editor, Failure Net Editor and the AIAG/VDA Form (MSR). To understand more about how data flows from the Structure Editor or Failure Net into the MSR Form, right-click on the icon info icon - link to website in the cells “Current Diagnostic Monitoring” and “Current System Response” within the IQ-Software, or click here

Diagnostic Monitoring Action: image SE and FNE

Diagnostic Monitoring Action: image SE and FNE 2

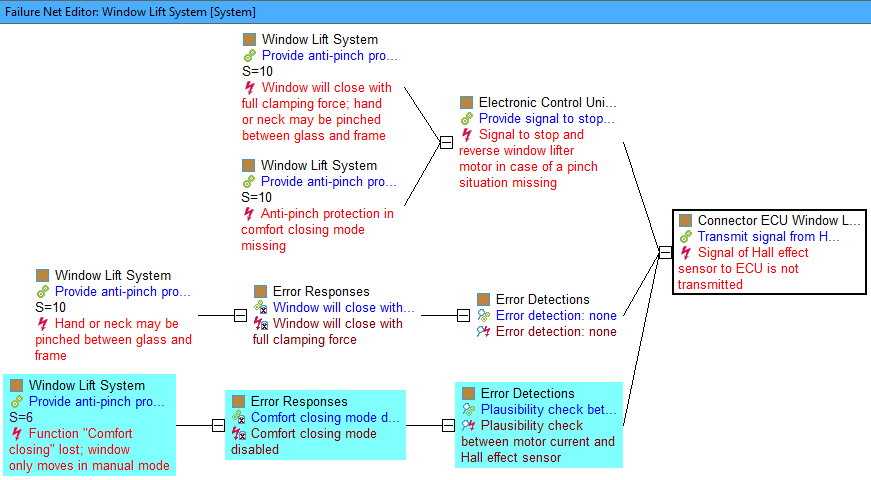

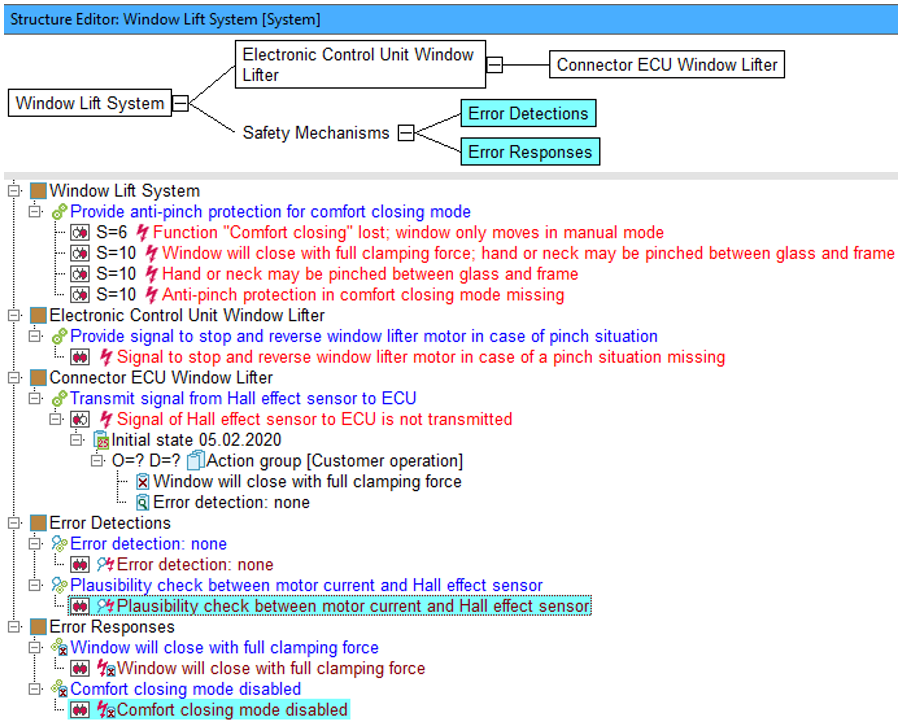

Extending the structure of the AIAG/VDA Window Lift System example into step 6 (optimization) gives the following images in both the Structure Editor and Failure Net Editor. The new additions are highlighted in turquoise:

Diagnostic Monitoring Action: image 3

Diagnostic Monitoring Action: iamge 4

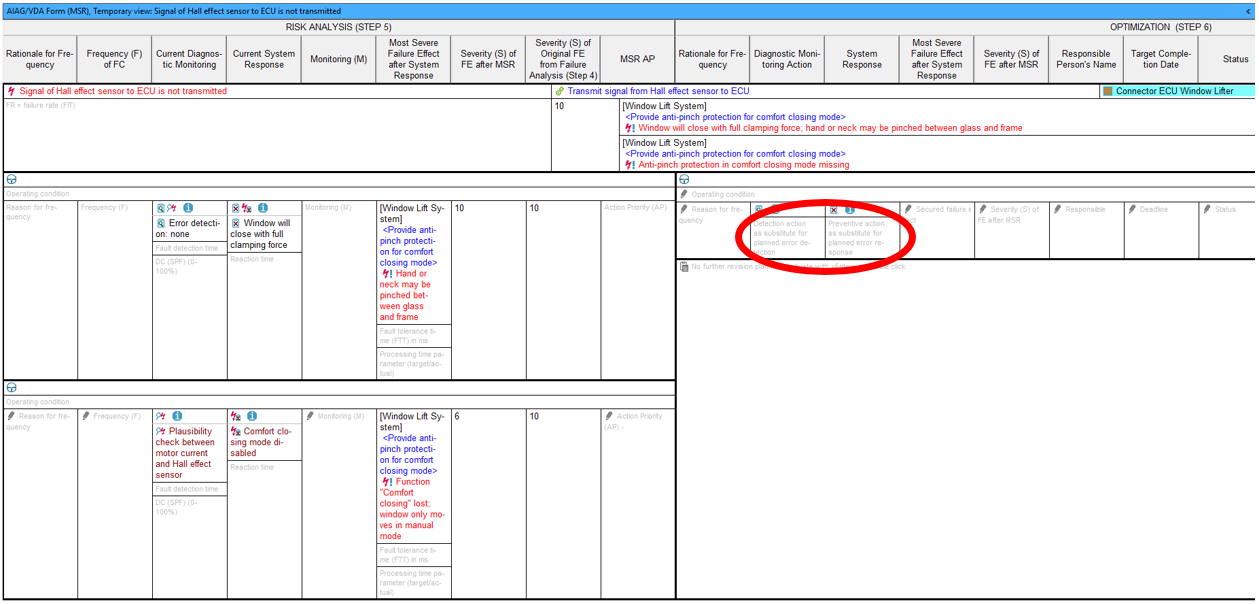

If you look at the MSR Form after these additions, you will see that the new safety mechanisms and their failure effects were arranged in step 5 (Risk Analysis) as an extension to the existing safety mechanism path instead of being added to step 6 (Optimization). The expected position of error detection and error response in step 6 remains empty.

Diagnostic Monitoring Action: image 5

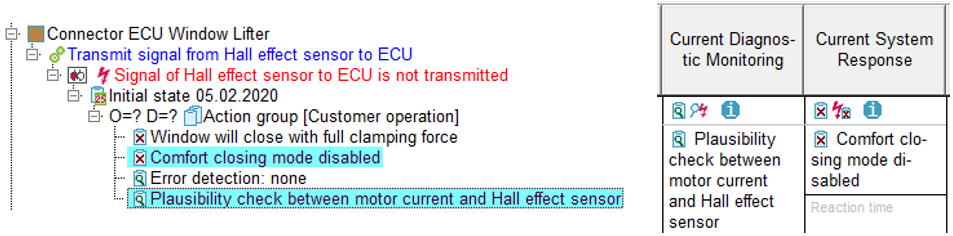

The same applies if the actions in Customer operation are derived from the two new safety mechanisms. The two cells, “Diagnostic Monitoring Action” and “System Response”, in Optimization remain unfilled. The only changes are to the Structure Editor list and the icons that appear above the two cells in step 6. See following images:

Diagnostic Monitoring Action: image 6

It is only possible to fill the the two cells “Diagnostic Monitoring Action“ und “System Response”, by entering the data directly into the cells in the MSR Form.

In some cases, you may see the following icon also appear in the cell:special_situation. This indicates a special situation, which is not obvious when simply viewing the MSR Form, whereby the IQ-Software has recognised a certain data constellation in the document. Right-click on the iconspecial_situationto learn more about the case.

3. Direct entry of data into the MSR Form

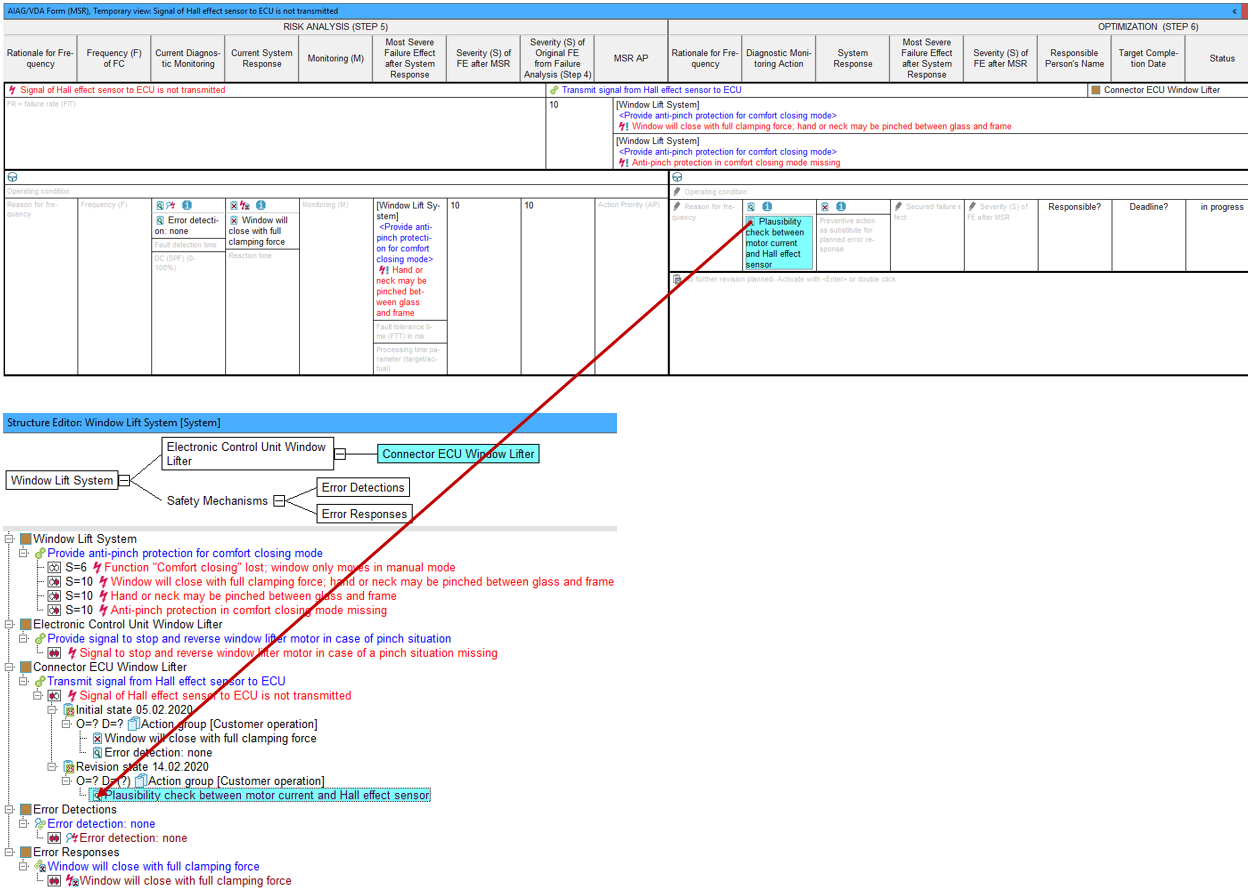

The following image gives a general overview of how data flows from the MSR Form, when data is entered into the cell “Diagnostic Monitoring Action“, to e.g. the Structure Editor of an existing FMEA.

Diagnostic Monitoring Action: image 7

A detection action must be entered into the cell “Diagnostic Monitoring Action“, from which an error detection can be derived that can be linked in a failure net. In this example, the detection action is “Plausibility check between motor current and Hall effect sensor”. In order for actions to have different attributes (e.g. responsibles, deadlines etc.), action states (inital/revision) are created, to which the actions are anchored and their attributes are listed. For the MSR Form, it is essential that the detection action is anchored in an action state with an action group “Customer operation”. This is because an error detection of  the same name can then be generated using the context menu-command “Derive actions for customer operation” in the MSR Form. This error detection is ultimately necessary for the failre net, together with the error response and failure effect, in order to document the secured path of the failure cause “Signal of Hall effect sensor to ECU is not transmitted”. The IQ-Software automatically creates an action state with the action group “Customer operation” for the failure cause, as soon as an entry is made into the cell “Diagnostic Monitoring Action“.

When you create a new safety mechanism in the MSR Form (here: “Plausibility check between motor current and Hall effect sensor”), the IQ-Software must anchor this new error detection. This is because it gets linked to other IQ-objects, which are automatically created if required. More can be read here when clicking on the info icon - link to website icon in the cell “Current Diagnostic Monitoring” and “Current System Response” or click here.

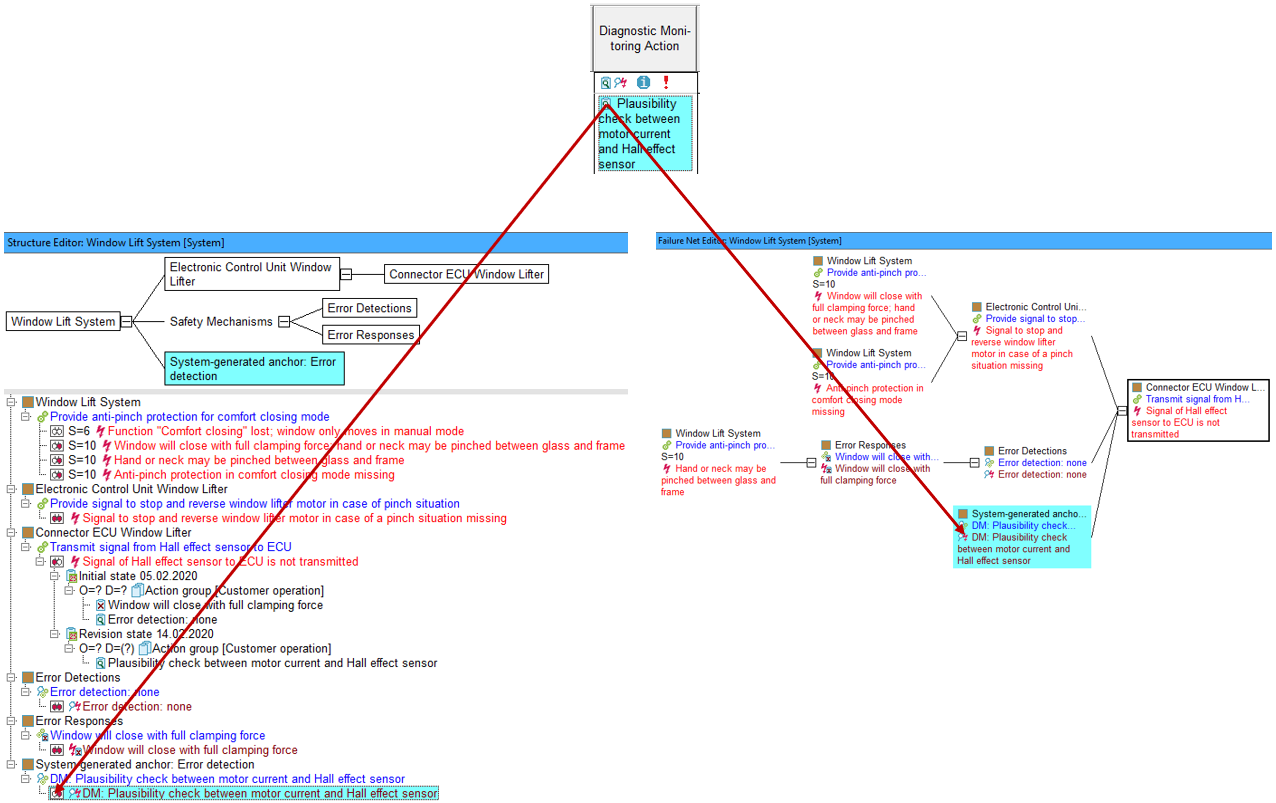

In the Window Lift System example, and for the safety mechanism “Plausibility check between motor current and Hall effect sensor“, the structure element (SE) “System-generated anchor: Error detection” must be created. In this SE, a function “DM: Plausibility check between motor current and Hall effect sensor” as well as an error detection with the same name is stored. The “DM” indicates that this IQ-object is assigned in the MSR Form cell “Diagnostic Monitoring Action”. The SE is generated because the IQ-Software does not know where the error detection should be anchored. The IQ-Software does not know that in this case an SE for the error detection already exists. However, it knows that the newly generated error detection must secure the failure “Signal of Hall effect sensor to ECU is not transmitted“. As such, the error detection is automatically linked to the failure cause in the failure net. The following image shows the relationships of the objects. The MSR Form part of the image is limited to just the cell “Diagnostic Monitoring Action”. The icon above the cell  indicates that an error detection has already been derived from the detection action entered here.

Diagnostic Monitoring Action: image 8

The structure created (and failure net) can be used when further expanding your FMEA using the IQ-Software. Multiple editors are available to you to view and edit your data in various ways.  You can also work directly with the MSR Form. Note here that by entering data here in other columns, further automatic creations of elements may occur.

Note: The IQ-Software is constantly being improved and updated. As such, the images you see here may differ from that of your current IQ-service pack. Despite this, the content/information from this page remains the same.
