Function of failure cause not linked with function of failure mode

Help & support

The function of this failure cause is not linked (in the function net) with the function of its corresponding failure mode.

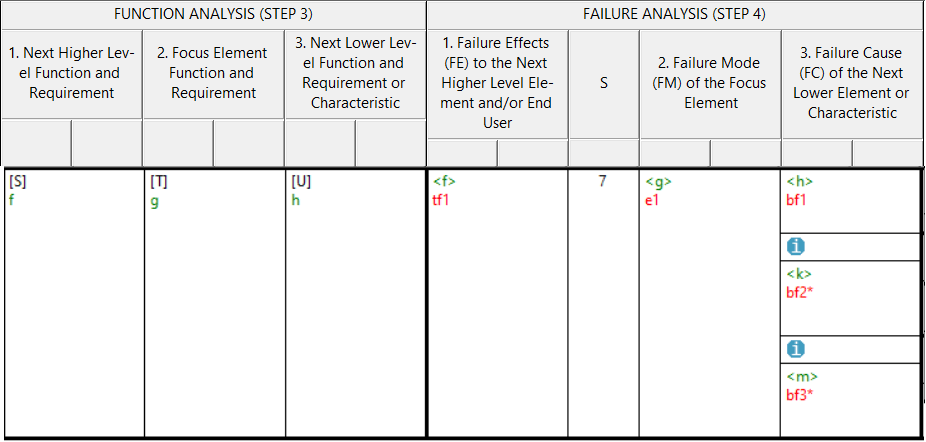

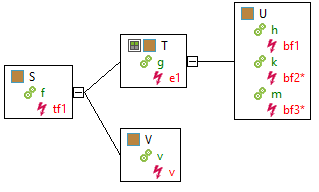

The following example shows this situation. As can be seen in the Formsheet image (last image), at failure causes bf2* und bf3* an info icon appears. This is because the functions, k and m, belonging to these causes are not linked to the function of the failure mode e1. Therebyg does not exist in any function net, while m is linked to v, which in turn is not a function of the failure mode e1.

Structure

Structure

Failure Net

Failure Net

Function Net

Function Net 1

Function Net 2

Formsheet (snippet)

Formsheet snippet

Note: The IQ-Software is constantly being improved and updated. As such, the images you see here may differ from that of your current IQ-service pack. Despite this, the content/information from this page remains the same.
